Godot: Dynamic First Person Controller

Technical Documentation

This documentation describes the architecture, variables, and methods used in the "Godot Dynamic First Person Controller" asset. The scripts are written in GDScript for the Godot 4.x engine.

System Architecture

The controller is divided into two main scripts to ensure modularity:

1. firstPersonController.gd — Main character controller (movement, physics, camera effects, audio). Attached to the CharacterBody3D node.
2. SmoothFollow.gd — Script for creating a "lazy follow" effect. Attached to the SpotLight3D node (flashlight).

1. Controller Script (firstPersonController.gd)

This script handles character physics, input, and procedural camera animations.

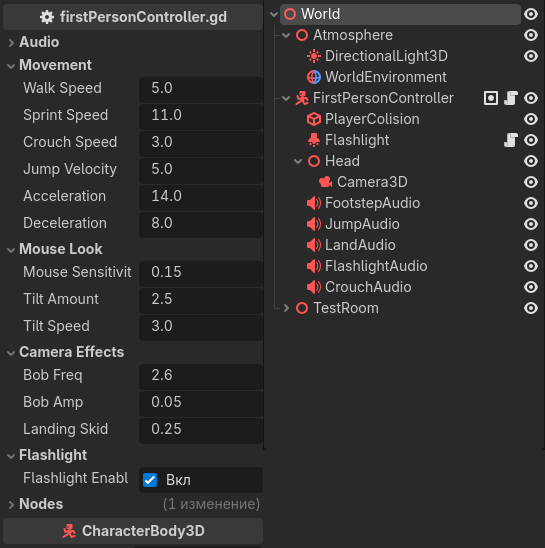

Exported Settings (Inspector)

Group: Audio

• footstep_sounds: (Not directly used in current logic, reserved for an array of footstep sounds).
• base_step_interval: Base interval between steps (affects sound playback frequency).
• sfx_footsteps, sfx_jump, sfx_land, sfx_crouch, sfx_flashlight: References to AudioStreamPlayer3D nodes for the respective actions.

Group: Movement

• walk_speed (float, default 5.0): Standard walking speed.
• sprint_speed (float, default 11.0): Sprinting speed (while holding Shift).
• crouch_speed (float, default 3.0): Movement speed while crouching.
• jump_velocity (float, default 5.0): Jump impulse force (Y-axis).
• acceleration (float, default 14.0): Speed of reaching the target velocity when starting movement.
• deceleration (float, default 8.0): Stopping speed when movement keys are released (inertia).

Group: Mouse Look

• mouse_sensitivity (float, default 0.15): Mouse sensitivity on X and Y axes.
• tilt_amount (float, default 2.5): Maximum camera tilt angle (in degrees) when strafing or making sharp mouse turns.
• tilt_speed (float, default 3.0): Camera tilt interpolation (smoothing) speed.

Group: Camera Effects

• bob_freq (float, default 2.6): Head bob frequency while walking (wave speed).
• bob_amp (float, default 0.05): Head bob amplitude (range).
• landing_skid (float, default 0.25): Amount of downward camera dip on the Y-axis upon landing.

Group: Flashlight

• flashlight: Reference to the SpotLight3D node.
• flashlightEnable: State variable (1 - enabled, 0 - disabled), reserved for external logic.

Group: Nodes

• head_path, camera_path, collision_shape_path: Paths to key child nodes (Head, Camera, Collision).

Method Descriptions

• _ready(): Called on startup. Captures the mouse cursor (Input.MOUSE_MODE_CAPTURED) and sets the initial speed.
• _unhandled_input(event): Handles mouse movement. Rotates CharacterBody3D on the Y-axis (left/right) and the Head node on the X-axis (up/down). The vertical viewing angle is clamped between -89 and 89 degrees to prevent camera flipping.
• _physics_process(delta): Main physics loop.
  • Applies gravity.
  • Checks landing (was_on_floor) to trigger impact effects.
  • Processes WASD input, normalizes the direction vector.
  • Uses linear interpolation (lerp) for smooth acceleration and deceleration.
  • Calls move_and_slide().
  • Calls camera bob and tilt functions.
• handle_speed(): Speed state machine. Switches current_speed between walking, sprinting, and crouching based on pressed keys (Shift/Ctrl).
• handle_crouch(delta): Manages crouching logic.
  • Detects the intent to stand up (Ctrl key released).
  • Checks for overhead collisions via is_something_above(). If there is an obstacle above the player, it forces the is_crouching = true state.
  • Smoothly changes the CapsuleShape3D height and the Head node's Y position using lerp.
  • Triggers sounds and visual effects (camera shake) upon state change.
• is_something_above() -> bool: Casts a physics ray (PhysicsRayQueryParameters3D) upwards from the player's center to a height of base_height. Excludes the player themselves from the check (get_rid()). Returns true if the ray hits static geometry.
• apply_landing_effect() / apply_crouch_impact(amount): Uses create_tween() to create a quick, procedural animation changing the camera's Y position (simulating body kinetics).
• apply_head_bob(delta): Calculates the camera position using sine waves (sin for the Y-axis, cos for the X-axis). The effect is applied only when moving on the ground. If the player stops, the camera smoothly returns to the zero point. Synchronizes footstep sound playback with the lowest point of the sine wave amplitude.
• apply_camera_tilt(delta, input_x): Calculates the target camera tilt on the Z-axis, summing the input from strafe keys (A/D) and horizontal mouse movement.
• toggle_flashlight(): Toggles flashlight visibility and plays a click sound. Triggered by the 'F' key in the _input method.
• play_*_sound(): A group of wrapper methods for playing sounds. They use randf_range to randomize pitch (pitch_scale), preventing the "machine gun" effect (repeating the exact same sound). Footstep sounds also dynamically change volume depending on the state (sprinting/crouching).

2. Smooth Follow Script (SmoothFollow.gd)

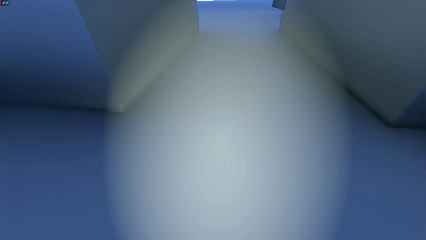

This script is designed for independent objects that need to smoothly follow the camera, creating an inertia effect (e.g., a flashlight in hand or on a helmet).

Exported Settings

• target_node (Node3D): The target node the object follows. If unassigned, the script will attempt to find the active camera automatically in _ready().
• follow_speed (float, default 5.0): The speed at which the flashlight "catches up" to the camera. A lower value gives a more pronounced "floating" effect.
• offset (Vector3, default (0.3, -0.2, -0.2)): The flashlight's offset relative to the target node (camera). Set in the camera's local coordinates.

Method Descriptions

• _ready():
  • Calls set_as_top_level(true). This is a critically important function that detaches the node's transform (position and rotation) from its parent in the scene tree. This allows the flashlight to be inside the player hierarchy but move according to its own logic.
• _process(delta):
  • Position Follow: Translates the offset from local camera coordinates to global coordinates (using the camera's basis target_node.global_transform.basis). Then smoothly moves the flashlight to this point using lerp.
  • Rotation Follow: Converts the bases (rotation matrices) of the current object and the camera into quaternions (get_rotation_quaternion()). Uses slerp (spherical linear interpolation) for smooth and mathematically correct rotation without gimbal lock. The new rotation is applied back to the flashlight's basis.
